KL91 wipers are high-performance sealing elements produced from premium elastomer material. Designed specifically for hydraulic applications, these wipers prevent foreign particles from the outer environment from penetrating the system. The double lip structure makes them exceptionally suitable for systems where a thin oil film is required on the rod.

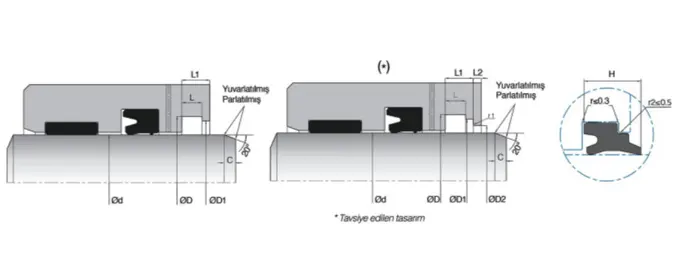

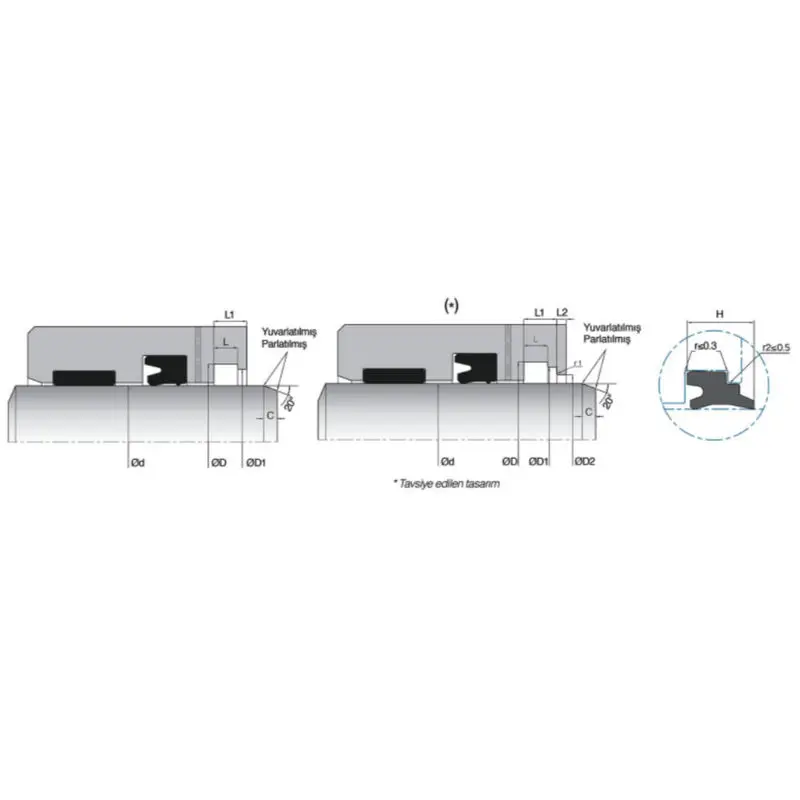

| Part No. | d (f8) | D (H10) | D1 (H9) | D2 (H10) | L (+0.2/-0) | L1 (+0.2/-0) | L2 ≥2 | H | r1 | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| KL91-010 | 10 | 18 | 16 | 13.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-012 | 12 | 20 | 18 | 15.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-014 | 14 | 22 | 20 | 17.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-020 | 20 | 28 | 26 | 23.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-025 | 25 | 33 | 31 | 28.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-030 | 30 | 38 | 36 | 33.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-040 | 40 | 48 | 46 | 43.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-050 | 50 | 58 | 56 | 53.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-060 | 60 | 68 | 66 | 63.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-080 | 80 | 88 | 86 | 83.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-100 | 100 | 108 | 106 | 103.5 | 4 | 6 | 2 | 8 | 0.5 | NBR |
| KL91-150 | 150 | 162 | 159 | 155 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-200 | 200 | 212 | 209 | 205 | 5.5 | 8.2 | 3 | 11 | 1 | NBR |
| KL91-300 | 300 | 315 | 311 | 307 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-400 | 400 | 415 | 412 | 407 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
| KL91-500 | 500 | 515 | 512 | 507 | 6.4 | 9.5 | 3 | 13 | 1 | NBR |
