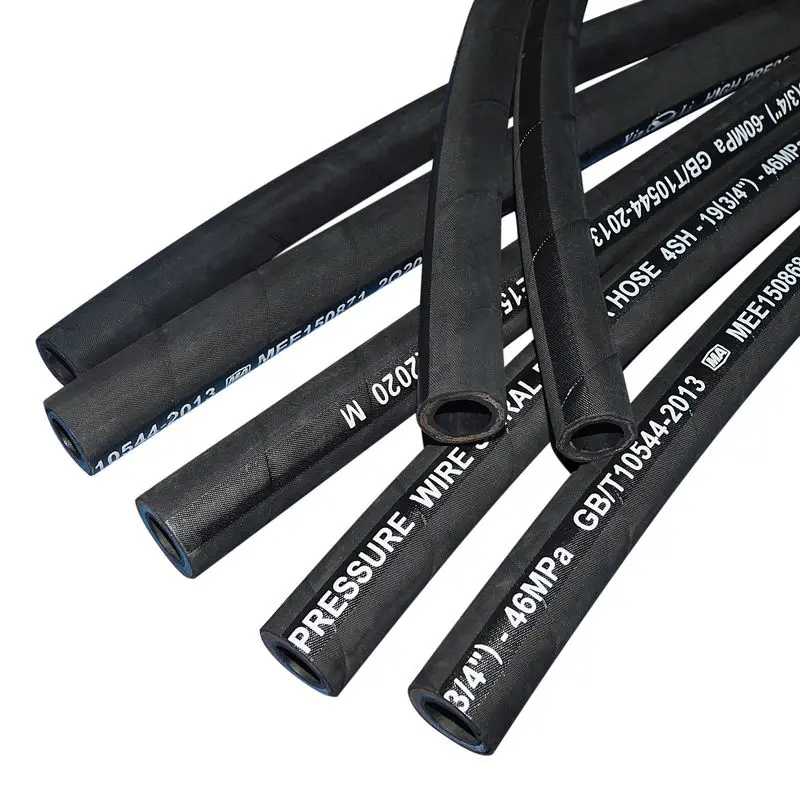

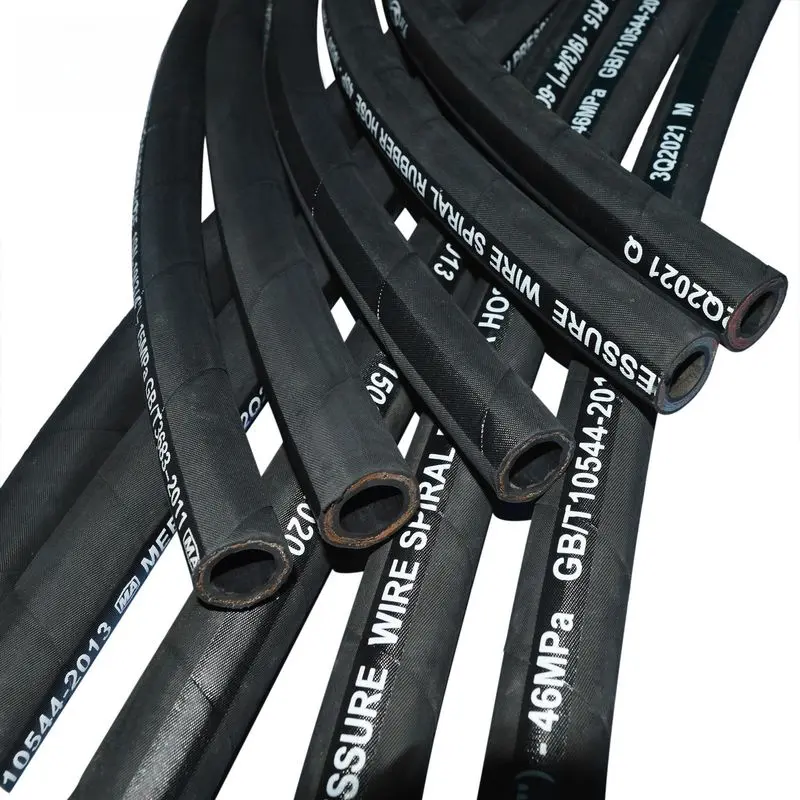

SAE 100 R13 Suction Steel Wire Braided Hydraulic Hose Pipe
This high-performance hose is engineered for delivering petroleum-based hydraulic oils under extreme high-pressure working conditions. With its robust construction, it ensures reliability in the most demanding industrial environments.

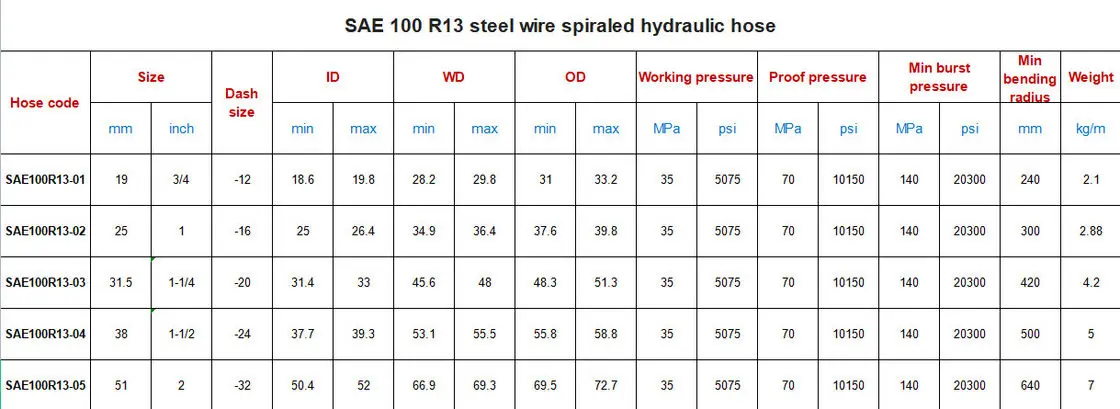

| Hose Code | Size | Dash Size | ID (mm) | OD (mm) | Working Pressure | Min Burst Pressure | Min Bend Radius (mm) | Weight (kg/m) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | min | max | min | max | MPa | psi | MPa | psi | ||||
| SAE100R13-01 | 19 | 3/4 | -12 | 18.6 | 19.8 | 31.0 | 33.2 | 35 | 5075 | 140 | 20300 | 240 | 2.1 |
| SAE100R13-02 | 25 | 1 | -16 | 25.0 | 26.4 | 37.6 | 39.8 | 35 | 5075 | 140 | 20300 | 300 | 2.88 |
| SAE100R13-03 | 31.5 | 1-1/4 | -20 | 31.4 | 33.0 | 48.3 | 51.3 | 35 | 5075 | 140 | 20300 | 420 | 4.2 |
| SAE100R13-04 | 38 | 1-1/2 | -24 | 37.7 | 39.3 | 55.8 | 58.8 | 35 | 5075 | 140 | 20300 | 500 | 5.0 |
| SAE100R13-05 | 51 | 2 | -32 | 50.4 | 52.0 | 69.5 | 72.7 | 35 | 5075 | 140 | 20300 | 640 | 7.0 |
