Discount 55/70T LWC Longwall Chock Carrier 10 Km/Hr 20 Km/Hr For Coal Mine Underground Operations Pricelist, Product
Discount 55/70T LWC Longwall Chock Carrier 10 Km/Hr 20 Km/Hr For Coal Mine Underground Operations Pricelist, Product
Discount 55/70T LWC Longwall Chock Carrier 10 Km/Hr 20 Km/Hr For Coal Mine Underground Operations Pricelist, Product
1 / 3
Discount 55/70T LWC Longwall Chock Carrier 10 Km/Hr 20 Km/Hr For Coal Mine Underground Operations Pricelist, Product
Discount 55/70T LWC Longwall Chock Carrier 10 Km/Hr 20 Km/Hr For Coal Mine Underground Operations Pricelist, Product
Discount 55/70T LWC Longwall Chock Carrier 10 Km/Hr 20 Km/Hr For Coal Mine Underground Operations Pricelist, Product

Discount 55/70T LWC Longwall Chock Carrier 10 Km/Hr 20 Km/Hr For Coal Mine Underground Operations Pricelist, Product

LWC Chock Carrier

Longwall Chock Carrier

Chock Carrier 10 Km/hr

Place of Origin:

CHINA

Brand Name:

KELONG

Model Number:

KLTC-01

Send Inquiry

Product Description

Product Specifications
Specifications
55T 4WD, 70T 4WD
Overall Length
10184 mm / 10588 mm
Overall Width
3700 mm / 4123 mm
Overall Height
1860 mm / 1971 mm
Payload Width
1752/2123 mm / 2123 mm
Ground Clearance
286 mm
Installed Power
242 KW
Tare Weight
32 T / 33.7 T
Draw Bar Pull
24.7 T / 26.1 T
Carry Speed
10 Km/hr
Travel Speed
20 Km/hr
Application
Coal Mine Underground Operations
Payment & Shipping Terms
📦 MOQ 1 Unit
🛡️ Packaging Customizable packaging
⏱️ Delivery Time 30 Days
💳 Payment Terms L/C, T/T
🏭 Supply Ability 99999 Units
Product Overview

LWC Longwall Chock Carrier

The Chock Carrier is purpose built to handle heavy chocks in your mine. It is designed to take in stride a wet grade, poor floor or low workings as it carries the chock with mass directly over the drive wheels, ensuring maximum stability and efficiency during underground operations.

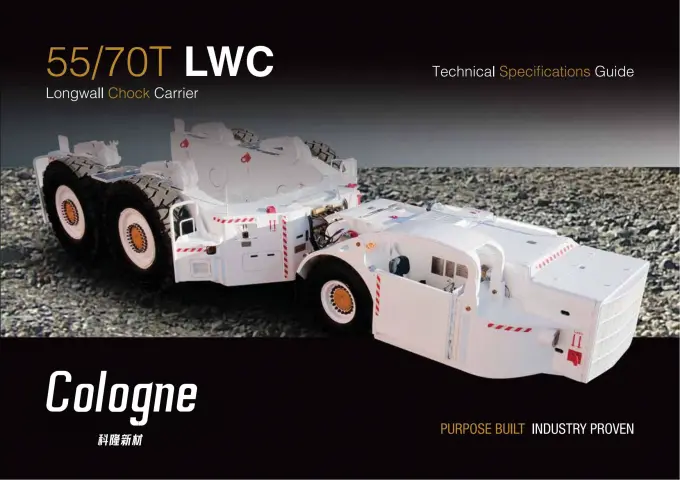

55/70T LWC Longwall Chock Carrier 1

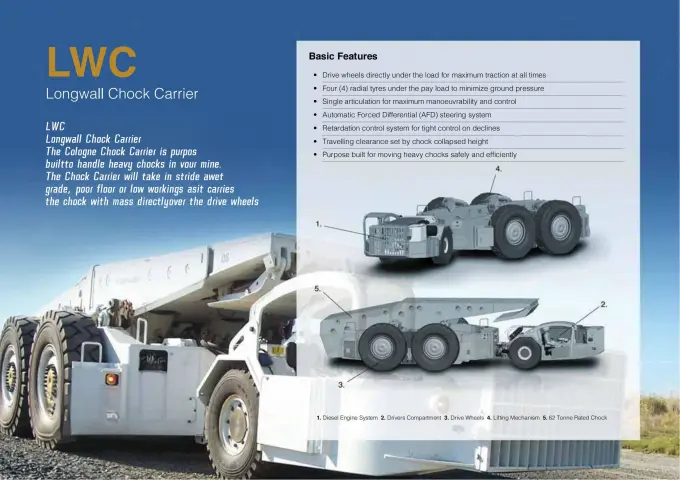

55/70T LWC Longwall Chock Carrier 2

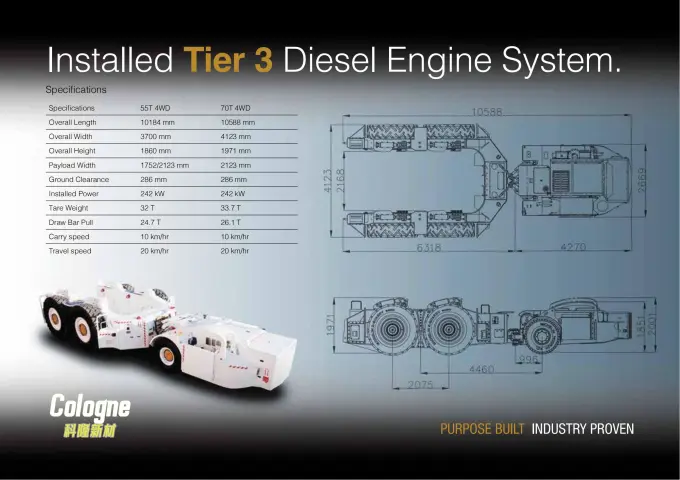

55/70T LWC Longwall Chock Carrier 3
Frequently Asked Questions
What are the load capacities for the LWC series?
The LWC series is available in two main specifications: 55T 4WD and 70T 4WD, designed to handle heavy duty longwall chocks.
What is the maximum travel speed of the Chock Carrier?
The equipment features a travel speed of 20 Km/hr and a dedicated carry speed of 10 Km/hr for safe underground operations.
Is this equipment suitable for difficult floor conditions?
Yes, the LWC is specifically purpose-built to handle wet grades, poor floors, and low workings in coal mine underground operations.
What is the installed power of these vehicles?
Both the 55T and 70T models are equipped with an installed power of 242 KW.
What are the standard payment and delivery terms?
Standard delivery time is approximately 30 days. We accept L/C and T/T payment terms with customizable packaging options available.
What is the ground clearance for the LWC?
The LWC Longwall Chock Carrier maintains a ground clearance of 286 mm to facilitate movement over uneven terrain.
